DomiWorks Mazda 13B/20B Rotary to ZF 8HP Adapter Kit – 45/50/70/75 N57 B57 B58

Connect a Mazda 13B or 20B rotary engine to a compatible BMW ZF 8HP transmission with this DomiWorks adapter kit.

Compatibility

Listed for 8HP45, 8HP50, 8HP70 and 8HP75 transmissions with N57, B57 or B58 applications. Confirm your specific gearbox before ordering.

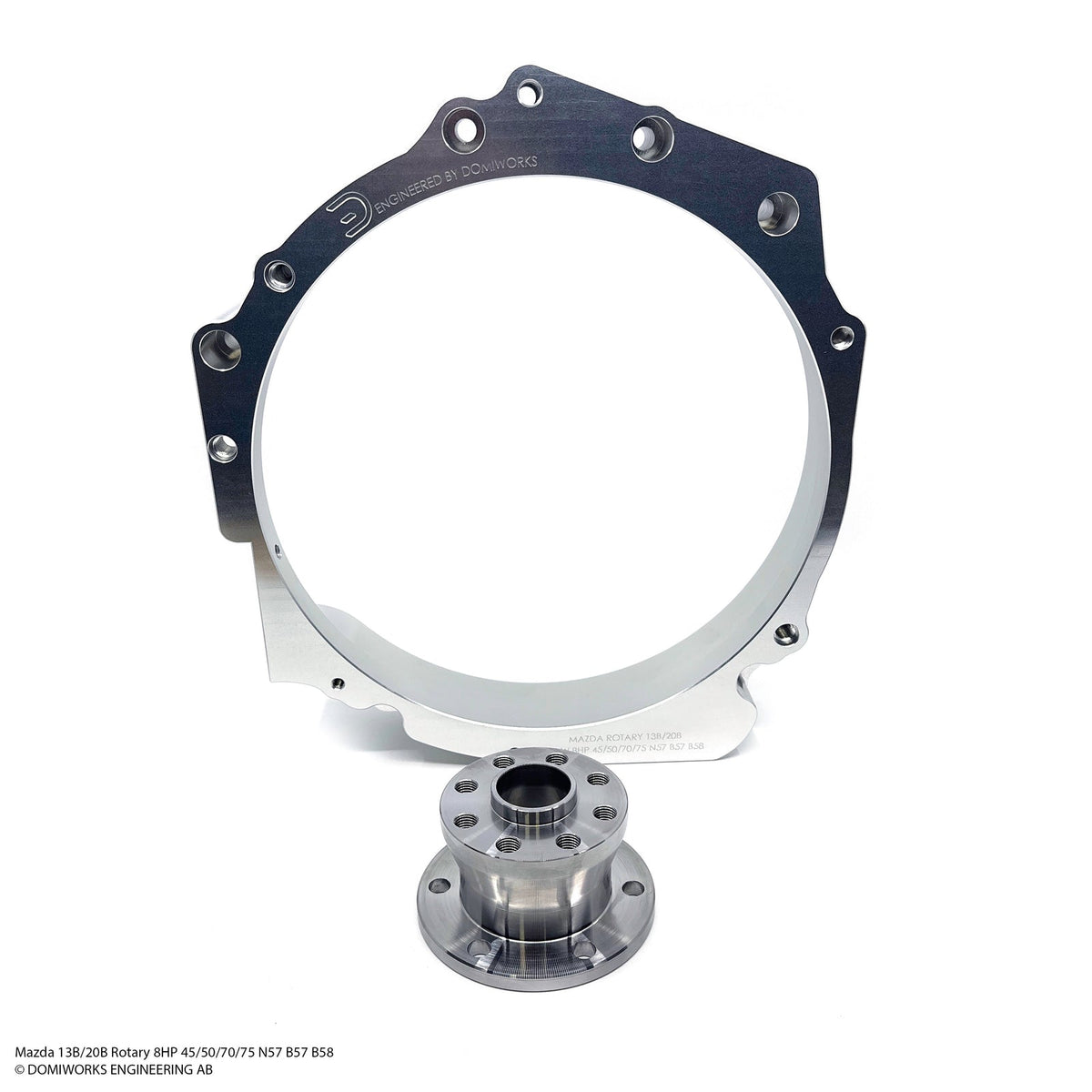

Kit contents

• 76 mm natural-anodised aluminium adapter plate
• Counterweight mounting hub
• BMW flexplate for torque converter attachment
• Most installation bolts and locating dowels

Installation requirements

Suitable for manual or automatic engine rear ends. Both require a Mazda automatic starter and Mazda automatic flexplate, which supplies the starter ring gear. Manual rear ends need grinding for starter clearance. The starter's upper-right corner also needs trimming to clear the transmission dowel and bolt.

The supplied hub fits over the Mazda flexplate, followed by the BMW flexplate. This is an adapter kit, not a complete transmission conversion.

Manufacturer part number: 21006001.
